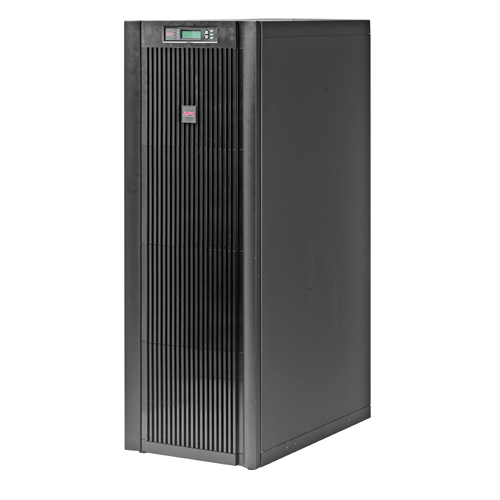

  APC Smart-UPS VT 20kVA 400V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable

  P/N: SUVTP20KH3B4S
  Manufacturer: APC

  Ask our experts about:

  - the equivalent of a third-party
  - The same product in a different than the new state (eg, refurbished)
  - Other / alternative solution



  Availability


  Ask the merchant

  Price and flexible funding

  • Price
  • Negotiations
  • Reseller

  Net price:

  Available on call

  Negotiate the price if:

  - you don't fit in your budget
  - you buy more than one piece
  - you are our regular customer
  - to check how flexible our prices are!



  Find out about our
  pricing

  Are you a Reseller?

  We can offer you additional benefits and long-term cooperation! Contact us for more details !




  Help Zone

  GRATIS

  Consultations

  Call us: +48 71 738 25 31

  Mail us: office@112it.com

  > we'll advise you in your selection
  > we'll rescue your IT project
  > we'll search the whole world for you!


  Adjust further:

  • Options

  Think about selecting the option for the equipment you wish to purchase.

  portoflio have the option not only to the current models offered by the manufacturer, but also to older models that are no longer produced.

  Additional information Documentation in PDF


  • Specification
  • Description

  Other features	Nominal output voltage	400 Volt
  	Nominal input voltage	400 Volt
  	Dimensions (WxDxH)	559 x 813 x 1499 millimeter
  	Input connection type	Hard Wire 5-wire (3PH + N + G)
  	Output connections	1 x Hard Wire 4-wire (3PH + G) \n1 x Hard Wire 5-wire (3PH + N + G) \n1 x Screw Terminals
  Sound emission	Noise level	64 decibel
  Packaging data	Package dimensions (WxDxH)	650 x 1062 x 1643 millimeter
  	Package weight	537730 gram
  Certificates	Certification	C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112
  Operational conditions	Non-operating altitude	0 - 15000 meter
  	Operating altitude	0 - 999.9 meter
  	Storage relative humidity (H-H)	0 - 95 percent
  	Operating relative humidity (H-H)	0 - 95 percent
  	Storage temperature (T-T)	-15 - 45 degrees Celcium
  	Operating temperature (T-T)	0 - 40 degrees Celcium
  Weight & dimensions	Weight	506820 gram
  Colour	Colour of product	Black
  Battery	Replacement battery cartridge	3
  	Battery recharge time	5 hour
  	Battery type	VRLA
  	Battery technology	Sealed Lead Acid
  Power	Emergency Power Off (EPO)	Tak
  	Maximum current	27 A Ampere
  	Output power	16000 Watt
  	Output power capacity (VA)	20000 Voltampere

  APC Smart-UPS VT, 16 kW / 20 kVA,Input 400V 3PH / Output 400V 3PH, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model.

  Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Start up included, User Manual.

  - Parallel-capacity capable
  Increases total power capacity by using multiple UPSs simultaneously.
  - Parallel-redundant capable
  Power the connected equipment with multiple UPSs to increase system redundancy

  Availability
  - Dual mains input
  Increases availability by allowing the UPS to be connected to two separate power sources.
  - Scalable runtime
  Allows additional run time to be quickly added as needed.
  - Hot-swappable batteries
  Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  - Generator compatible
  Ensures clean, uninterrupted power to protected equipment when generator power is used.
  - Automatic internal bypass
  Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
  - Battery modules connected in parallel
  Delivers higher availability through redundant batteries.

  Serviceability
  - User-replaceable batteries
  Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  - Battery replacement without tools
  Allows quick, easy battery replacement.
  - Automatic self-test
  Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  - Shippable with modules installed
  Enables pre-installation UPS staging and testing and faster installation.
  - Modular design
  Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.

  Manageability
  - Network manageable
  Provides remote management of the UPS over the network.
  - InfraStruXure Manager Compatible
  Enables centralized management via the APC InfraStruXure Manager.
  - LCD display
  Alpha-Numeric Display which displays system parameters and alarms.
  - Audible alarms
  Provides notification of changing utility power and UPS conditions.
  - Programmable frequency
  Ensures compatibility with different input frequencies.
  - LED status indicators
  Quickly understand unit and power status with visual indicators.
  - SmartSlot
  Customize UPS capabilities with management cards.

  Total Cost of Ownership
  - Input power factor correction
  Minimizes installation costs by enabling the use of smaller generators and cabling.
  - Temperature-compensated battery charging
  Prolongs battery life by regulating the charge voltage according to battery temperature.
  - Manual maintenance bypass
  Reduces installation costs by eliminating the need for an external mechanical bypass.
  - Intelligent battery management
  Maximizes battery performance, life, and reliability through intelligent, precision charging.

  Protection
  - Frequency and voltage regulation
  Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
  - Safety-agency approved
  Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment. UL, FCC, CE, C-Tick approvals.
  - Cold-start capable
  Provides temporary battery power when the utility power is out.




  Please note that despite all efforts to the specification may be out of date, and posted pictures do not always correspond to the actual appearance of the product.
